Monday, August 8, 2022 By Paul Scanlon

Syntax highlighting with Gatsby, MDX, Tailwind and Prism React Renderer

Gatsby
React
JavaScript
MDX
Tailwind
Prism

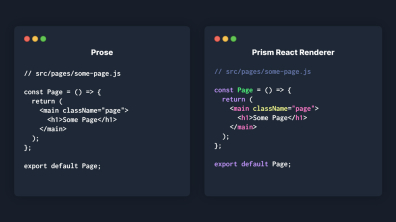

In this post I’ll explain how I use the excellent Prism React Renderer by Formiddable to add syntax highlighting to code blocks using Tailwind and Tailwind Typography, using both MDX 1 and MDX 2 with the help from gatsby-plugin-mdx.

The complete examples can be found on the following links

Branch: main » MDX 1

⚙️ gatsby-prism-react-renderer-mdx
- Gatsby Cloud Preview

Branch: refactor/mdx-2 » MDX 2

⚙️ refactor/mdx-v2

MDX 1

This guide is for v3 of the Gatsby MDX Plugin: gatsby-plugin-mdx: ^3.0.0 which is designed to work with MDX 1.

Tailwind Install

I’m going to assume you already have Tailwind and Tailwind Typography installed and configured. If you haven’t, have a look at the Tailwind installation guides.

Prose

To enable prose and Typography settings across the entirety of my example site I’ve added the necessary Tailwind classes to an HTML elment that wraps the whole Gatsby site and created a RootElement component. The src for this component can be found here: root-element.js

This component looks a little something like this.

// src/components/root-element.js

import React from 'react';

const RootElement = ({ children }) => {
  return <main className='mx-auto px-2 sm:px-4 prose prose-sm sm:prose'>{children}</main>;
};

export default RootElement;

I then use the RootElement component in both gatsby-browser.js and gatsby-ssr.js like this.

// gatsby-browser.js

import React from 'react';

import RootElement from './src/components/root-element';
import './src/styles/global.css';

export const wrapRootElement = ({ element }) => {
  return <RootElement>{element}</RootElement>;
};

// gatsby-ssr.js

import React from 'react';

import RootElement from './src/components/root-element';

export const wrapRootElement = ({ element }) => {
  return <RootElement>{element}</RootElement>;
};

MDXProvider | MDX 1

The location of your MDXProvider will entirely depend on where in your project you’ve used it. On the main branch in my example repo I’ve added it to the collection route responsible for rendering my .mdx files: You can find the src code here: {mdx.fields__slug}.js.

The main thing to draw your attention to is the use of the components prop. This is responsible for handling transformations of HTML tags or React components found in any MDX file.

// src/pages/posts/{mdx.fields__slug}.js

import React from 'react';
import { graphql } from 'gatsby';

import { MDXProvider } from '@mdx-js/react';
import { MDXRenderer } from 'gatsby-plugin-mdx';

import PrismSyntaxHighlight from '../../components/prism-syntax-highlight';

const components = {
  code: ({ children, className }) => {
    return <PrismSyntaxHighlight className={className}>{children}</PrismSyntaxHighlight>;
  },
};

const Page = ({
  data: {
    mdx: { body },
  },
}) => (
  <MDXProvider components={components}>
    <MDXRenderer>{body}</MDXRenderer>
  </MDXProvider>
);

export const query = graphql`
  query ($id: String) {
    mdx(id: { eq: $id }) {
      body
    }
  }
`;

export default Page;

In the case of syntax highlighting you’ll want to transform any HTML code elements into a “styled code block”. You achieve this using the components prop. You’ll see in the components object I’ve added a key for code and destructured both the children and className from the MDX props.

I pass the className on to the <PrismSyntaxHighlight /> component via a prop called className and render the children as children of the <PrismSyntaxHighlight /> component.

Components | MDX 1

// components object

const components = {
  code: ({ children, className }) => {
    return <PrismSyntaxHighlight className={className}>{children}</PrismSyntaxHighlight>;
  },
};

PrismSyntaxHighlight

The next step is to create the <PrismSyntaxHighlight /> component. The below is the default setup that I’ve lifted straight from the repo: Usage.

Default Highlight

This example will work just fine but you’ll need to make a few changes in order to pass the language from MDX. I also made a few more changes so I could more easily style the code using Tailwind.


import React from 'react';
import Highlight, { defaultProps } from 'prism-react-renderer';

const PrismSyntaxHighlight = ({ children, className }) => {
  return (
    <Highlight {...defaultProps} code={, className} language="jsx">
      {({ className, style, tokens, getLineProps, getTokenProps }) => (
        <pre className={className} style={style}>
          {tokens.map((line, i) => (
            <div {...getLineProps({ line, key: i })}>
              {line.map((token, key) => (
                <span {...getTokenProps({ token, key })} />
              ))}
            </div>
          ))}
        </pre>
      )}
    </Highlight>
  );
};

export default PrismSyntaxHighlight;

Custom Highlight

The src for my completed version can be found here: prism-syntax-highlight.js, but it looks similar the below.

// src/components/prism-syntax-highlight.js

import React from 'react';
import Highlight, { defaultProps } from 'prism-react-renderer';
import theme from 'prism-react-renderer/themes/dracula';

const PrismSyntaxHighlight = ({ children, className }) => {
  const language = className.replace(/language-/gm, '');

  return (
    <Highlight {...defaultProps} code={children} language={language} theme={theme}>
      {({ className, style, tokens, getLineProps, getTokenProps }) => (
        <code className={className} style={style}>
          {tokens.slice(0, -1).map((line, i) => (
            <div {...getLineProps({ line, key: i })}>
              {line.map((token, key) => (
                <span {...getTokenProps({ token, key })} />
              ))}
            </div>
          ))}
        </code>
      )}
    </Highlight>
  );
};

export default PrismSyntaxHighlight;

Here are the changes in a little more detail.

Language

In order to pass the language from MDX on to the language prop it’s necessary to remove the word “language from the MDX className. I accomplished this using a Regular Expression (RegEx).

const language = className.replace(/language-/gm, '');

The new language const can now be passed on to the <Highlight /> component via the language prop.

-   <Highlight {...defaultProps} code={children} language="jsx">
+   <Highlight {...defaultProps} code={children} language={language}>

Theme

Prism React Renderer comes with a few themes, you can find them by having a look at the repo: prism-react-renderer/src/themes/. I chose to use “dracula”.

+ import theme from 'prism-react-renderer/themes/dracula';


- <Highlight {...defaultProps} code={children} language={language}>
+ <Highlight {...defaultProps} code={children} language={language} theme={theme}>

Code

I chose to return a code element rather than the pre element from the Default Highlight example so I could more easily style it using Tailwind.

- <pre className={className} style={style}>
+ <code className={className} style={style}>
    ...
+ </code>
- </pre>

Slice

At this point everything was looking great. However, I noticed a spurious extra empty line at the bottom of each code block. Using Array.prototype.slice() did allow me to remove it, but I haven’t tested every scenario, so this might not be a good idea. 😬

<code className={className} style={style}>
-  {tokens.map((line, i) => (
+  {tokens.slice(0, -1).map((line, i) => (
    <div {...getLineProps({ line, key: i })}>
      {line.map((token, key) => (
        <span {...getTokenProps({ token, key })} />
      ))}
    </div>
  ))}
</code>

Tailwind

In addition to styling code that appears in a “code block” you’ll probably also need to style inline code. The src for the complete Tailwind config can be here: tailwind.config.js

Inline code

The first thing I noticed was that “inline” code was displaying the backtick around the code. E.g. `code`. To remove this I added the following to tailwind.config.js

// ./tailwind.config.js

module.exports = {
  ...
  theme: {
    ...
    extend: {
      typography: (theme) => ({
        DEFAULT: {
          css: {
            code: {
              '&::before': {
                content: '"" !important'
              },
              '&::after': {
                content: '"" !important'
              }
            }
          }
        }
      })
    }
  },
  plugins: [require('@tailwindcss/typography')]
};

MDX 2 (RC Version)

This guide is for v4 of the Gatsby MDX Plugin: gatsby-plugin-mdx: 4.0.0-rc.3 which is designed to work with MDX 2.

The main changes for using MDX 2 are that body and the <MDXRenderer /> component are no longer required. There are no Tailwind changes required.

Here’s a diff of {mdx.fields__slug}.js

// src/pages/posts/{mdx.fields__slug}.js

import React from 'react';
import { graphql } from 'gatsby';

import { MDXProvider } from '@mdx-js/react';
- import { MDXRenderer } from 'gatsby-plugin-mdx';

import PrismSyntaxHighlight from '../../components/prism-syntax-highlight';

const components = {
  code: ({ children, className }) => {
-    return <PrismSyntaxHighlight className={className}>{children}</PrismSyntaxHighlight>;
+    return className ? (
+      <PrismSyntaxHighlight className={className}>{children}</PrismSyntaxHighlight>
+    ) : (
+      <code>{children}</code>
+    );
  }
};

const Page = ({
  data: {
-    mdx: { body }
  },
+ children
}) => (
  <MDXProvider components={components}>
-    <MDXRenderer>{body}</MDXRenderer>
+    {children}
  </MDXProvider>
);

export const query = graphql`
  query ($id: String) {
    mdx(id: { eq: $id }) {
-      body
    }
  }
`;

export default Page;

Changes | MDX 2

Here are the changes in a little more detail.

Dependencies

These are the dependencies used in the example repo in the refactor/mdx-v2 branch, you can see them listed here in package.json.

// package.json
"dependencies": {
  "@mdx-js/react": "^2.1.2",
  "gatsby": "4.20.0-mdxv4-rc.65",
  "gatsby-plugin-mdx": "4.0.0-rc.3",
  "gatsby-source-filesystem": "4.20.0-mdxv4-rc.124",
  ...
}

MDXRenderer

The MDXRenderer is no longer required so this can be removed all together, and instead of querying mdx.body you can pass children directly to the <MDXProvider > component.

Components | MDX 2

I’ve added a ternary condition to the to catch any “code” passed that doesn’t have a class name. Inline code for instance won’t have a language defined at the start of the code fences. If that’s the case I return an HTML <code /> element rather than the <PrismSyntaxHighlight /> component.

And that’s about it!

General Availability (GA)

The new MDX Plugin isn’t quite ready yet but the team have been doing such a super job, and I’m so excited by it, that I thought I’d share how I’ve been using it.

I don’t expect there to be any further major changes in the way you use it, so once it hits GA this example should still work. If that turns out not to be the case I’ll circle back to this post, and update it.
