By Paul Scanlon

How to Use PostgreSQL SSL certificates in GitHub Actions

If youā€™ve ever connected to a PostgreSQL database that required an SSL certificate, youā€™ll have probably downloaded the certificate and added it to you key chain, or provided a path to the .pem file in the connection credentials or string.

In this post iā€™ll explain a scenario where I couldnā€™t use either of the above methods, because my repository was public, I didnā€™t want to upload the .pem file to reference it via an absolute URL, and my PostgreSQL connection was running as part of a GitHub Action.

SSL Root Cert

One way to use an SSL certificate is to download it and then reference the file name at the end of the connection string. E.g.

postgresql://postgres:123@abc.com:5432/postgres?sslrootcert=/my-ssl-cert.pem

This would work if my-ssl-cert.pem lived at the root of a projectā€™s directory however, as mentioned, for my requirements I couldnā€™t upload, or store the .pem file anywhere because my repository was public.

My solution was to convert the SSL certificate into a base64 string and store it as an environment variable / GitHub Secret.

Covert SSL certificate to base64 string

By running the following in my terminal Iā€™m able to convert the SSL certificate into a base64 string.

cat my-ssl-cert.pem | base64

Hereā€™s what my terminal output looks like.

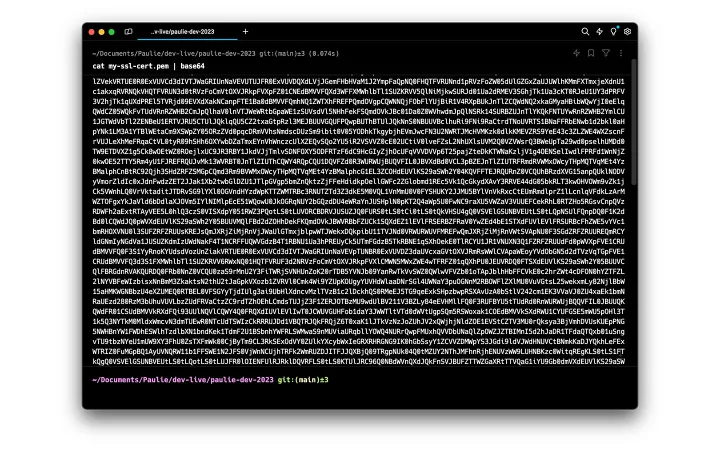

Screenshot of terminal base64 string

Add SSL certificate to GitHub Secrets

Now that I have a base64 string I can save it as a GitHub Secret by navigating to Settings > Secrets and variables > Actions, then scroll down to Repository secrets in the GitHub UI. From here I added a new environment variable named SSL_CERT_BASE64 and pasted the output from my terminal.

I can now reference the secret using secrets.SSL_CERT_BASE64 from within the GitHub Action. In the below workflow youā€™ll see a step named Decode SSL Cert which reads the value of secrets.SSL_CERT_BASE64 and decodes the base64 string and temporarily stores the file, my-ssl-cert.pem, in memory. The name of this ā€œtemporaryā€ file is what Iā€™ve added on to the end my connection string (as shown above), and also saved that as a GitHub Secret named DATABASE_URL

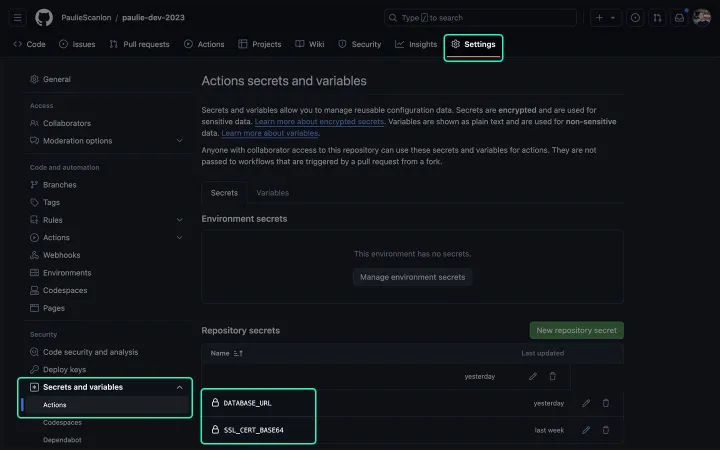

Screenshot of repository secrets

Hereā€™s an example of a GitHub Action which decodes the SSL certificate, installs PostgreSQL and then logs out (using echo) the result of the following query, SELECT VERSION();.

// .github/workflows/test-action.yml

name: Test Action

on:
  workflow_dispatch: # Trigger workflow manually

env:
  DATABASE_URL: ${{ secrets.DATABASE_URL }}
  SSL_CERT_BASE64: ${{ secrets.SSL_CERT_BASE64 }}
  PG_VERSION: 16

jobs:
  dump-and-restore:
    runs-on: ubuntu-latest

    steps:
      - name: Decode SSL Cert
        run: |
          echo "${{ secrets.SSL_CERT_BASE64 }}" | base64 --decode > my-ssl-cert.pem

      - name: Install PostgreSQL
        run: |
          sudo apt update
          yes '' | sudo /usr/share/postgresql-common/pgdg/apt.postgresql.org.sh
          sudo apt install -y postgresql-${{ env.PG_VERSION }}

      - name: Database Query
        run: |

          echo "database_name=$(/usr/lib/postgresql/${{ env.PG_VERSION }}/bin/psql "${{ env.DATABASE_URL }}" -t -c "SELECT VERSION();")"

Finished

Naturally youā€™ll probably want to do more than simply query your database but hopefully this will demonstrates how you can use an SSL certificate stored as a base64 string using GitHub Secrets.

Iā€™m not sure if this is the best, or even the only way to solve this problem but it worked for me. If you know of any other ways to do this, please let me know: @PaulieScanlon.
