By Paul Scanlon

Understanding Theme UI: 3 - Components

  • JavaScript
  • React
  • Theme UI

In this post i’m going to explain how to use Theme UI’s built in components. If you’re new to Theme UI i’d suggest having a read of the first two posts in this series to bring you up to speed

If you have read the first two posts, I must apologize as I’ll now be explaining why I don’t use either of those methods but I will of course be offering up an my preferred approach.

Under the hood things remain broadly the same, it’s where we write the Jsx that differs somewhat. To give you a taster of what I’ll be covering I have previously touched upon this subject in a previous post: Everything’s a box

To demonstrate I’ll be creating the same component using three different methods available to you in Theme UI and explain why I prefer the final method which i’ll refer to as “the component” approach”

The Jsx approach

This approach uses the Jsx Pragma and is mostly what you’ll see in the docs.

// MrJsxCard.js

/** @jsx jsx */
import { jsx } from 'theme-ui';

export const MrJsxCard = () => {
  return (
    <div
      sx={{
        backgroundColor: 'surface',
      }}
    >
      <img
        src='https://placedog.net/600/350'
        alt='a dog - woof'
        sx={{
          boxSizing: 'border-box',
          margin: 0,
          minWidth: 0,
          maxWidth: '100%',
          height: 'auto',
        }}
      />
      <div
        sx={{
          p: 3,
        }}
      >
        <h4
          sx={{
            color: 'text',
            fontFamily: 'heading',
            fontWeight: 'heading',
            fontSize: 2,
            mt: 0,
            mb: 3,
          }}
        >
          MrJsxCard
        </h4>
        <p
          sx={{
            color: 'text',
            fontFamily: 'body',
            fontWeight: 'body',
            mt: 0,
            mb: 3,
          }}
        >
          Lorem ipsum ...
        </p>
        <button
          sx={{
            appearance: 'none',
            backgroundColor: 'primary',
            border: 0,
            color: 'text',
            borderRadius: 0,
            cursor: 'pointer',
            fontSize: 1,
            lineHeight: 'inherit',
            minWidth: 120,
            margin: 0,
            textDecoration: 'none',
            px: 3,
            py: 2,
            ':focus': {
              outline: 'none',
              transition: '.2s linear box-shadow',
              boxShadow: (theme) => `0 0 0 2px ${theme.colors.muted}`,
            },
          }}
        >
          Click Me
        </button>
      </div>
    </div>
  );
};

Pretty verbose ay?! That’s because there’s quite a lot of styles applied via the sx prop. Each mapped CSS property still looks to the correct part of the theme to find it’s appropriate value but this approach can lead to duplicating a lot of styles between components making re-usability difficult to maintain.

The Styled approach

This approach uses the Styled component which can reduce the verbosity.

// MrStyledCard.js

/** @jsx jsx */
import { jsx, Styled } from 'theme-ui';

export const MrStyledCard = () => {
  return (
    <div
      sx={{
        backgroundColor: 'surface',
      }}
    >
      <Styled.img
        src='https://placedog.net/600/350'
        alt='a dog - woof'
        sx={{
          boxSizing: 'border-box',
          margin: 0,
          minWidth: 0,
          maxWidth: '100%',
          height: 'auto',
        }}
      />
      <div
        sx={{
          p: 3,
        }}
      >
        <Styled.h4>MrStyledCard</Styled.h4>
        <Styled.p>Lorem ipsum ...</Styled.p>
        <button
          sx={{
            appearance: 'none',
            backgroundColor: 'primary',
            border: 0,
            color: 'text',
            borderRadius: 0,
            cursor: 'pointer',
            fontSize: 1,
            lineHeight: 'inherit',
            minWidth: 120,
            margin: 0,
            textDecoration: 'none',
            px: 3,
            py: 2,
            ':focus': {
              outline: 'none',
              transition: '.2s linear box-shadow',
              boxShadow: (theme) => `0 0 0 2px ${theme.colors.muted}`,
            },
          }}
        >
          Click Me
        </button>
      </div>
    </div>
  );
};

By using <Styled.h4 /> and <Styled.p /> we can remove quite a few styles from the <h4 /> and <p /> HTML elements. This is a perfectly valid way to use Theme UI but personally the mix n match methods of using the Jsx Pragma and Styled don’t quite sit right with me. The <button /> is still a little verbose looking and would be tricky to re-use

The Component approach

This approach (my preference) uses Theme UI’s built in components. As with CSS properties, components can also “map” to a specific objects within the theme.

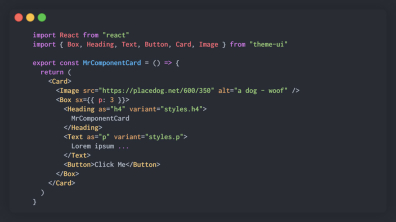

// MrComponentCard.js

import React from 'react';
import { Box, Heading, Text, Button, Card, Image } from 'theme-ui';

export const MrComponentCard = () => {
  return (
    <Card>
      <Image src='https://placedog.net/600/350' alt='a dog - woof' />
      <Box
        sx={{
          p: 3,
        }}
      >
        <Heading as='h4' variant='styles.h4'>
          MrComponentCard
        </Heading>
        <Text as='p' variant='styles.p'>
          Lorem ipsum ...
        </Text>
        <Button>Click Me</Button>
      </Box>
    </Card>
  );
};

Using Theme UI’s components keeps things consistent and we no longer need to mix n match methods and, et voilà the React import is back which makes this component look much more familiar. I also believe this is much more readable in terms of what each component is, e.g “Heading” and “Text” and because all components are mapped back to the theme we can hide all their styles away in the theme object.

Only one element has an sx prop, the <Box /> personally I feel it’s ok to add the sx props on layout wrappers for CSS properties like padding, margin and display etc as these vary greatly from component to component. The styles for common or re-usable components e.g <Heading />, <Text /> and <Button /> have all been neatly abstracted away.

I’ve mentioned “mapping” a few times throughout these posts and I know from discussions this is a tricky concept to grasp, but, it is covered in the docs if you know where to look.

Here’s what the docs say about the <Button /> component

Button variants can be defined in the theme.buttons object. The Button component uses theme.buttons.primary as its default variant style.

// path-to-theme/index.js

export default {
  colors: {
   ...
  },
  fonts: {
   ...
  },
  fontWeights: {
   ...
  },
  space : {
   ...
  },
  styles: {
   ...
  },
  buttons: {
    primary: {
      backgroundColor: 'primary',
      color: 'text',
      ...
      ':focus' : {
        ...
      }
    },
  },
}

Hopefully you can see the theme object above contains an object called buttons and within it is another object called primary. This is the location in the theme object that the <Button /> component will look to by default for it’s styles.

If you wanted to introduce a new variant, e.g “secondary” you could do the following

Usage 👇

<Button variant='secondary'>Click Me</Button>

Theme 👇

// path-to-theme/index.js

export default {
  ...
  buttons: {
    primary: {
     ...
    },
    secondary : {
      backgroundColor: 'secondary',
      color: 'background',
      ...
      ':focus' : {
        ...
      }
    }
  },
}

In this scenario instead of the <Button /> defaulting to theme.buttons.primary we re-map it to theme.buttons.secondary by applying a variant prop of “secondary”

The above introduces a new concept called “variants” and variants can be used by components using the variant prop or by using variant as CSS key from either the sx prop or from within the theme object itself. I’ll be discussing variants in more depth in a later post so please hang tight whilst I whip up more code snippets and examples.
